Conforms to API 526 Full Nozzle Design Integral Cast Flanges Metal Seat with optional O-ring Balanced Bellows option Open Bonnet and Lever Assemblies option Adjustable Blowdown 2600L – Multiple Service Single Trim Design option

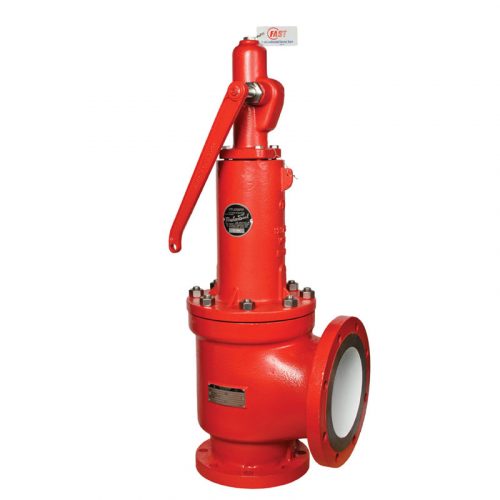

Farris 2600 General Specifications:
- Size 1” x 2” to 20” x 24”
- Orifice Areas D (0.15in2) to Z (176.7 in2)
- Set Pressure Ranges 15 to 6000 psig (1.0 to 413 barg)
- Temperature Ranges -320 to 1500°F (-195 to 815°C)
- Flange Classes: 150# – 2500# Suitable for Air, Gas, Vapor, Steam & Liquid Service
- Materials of Construction: Carbon Steel Stainless Steel, Low/High-Temperature Alloy Steels, Monel, Hastelloy C, Duplex, NACE Compliant Materials
Certifications
- ASME/NB Section VIII and III for Air, Steam and Water
- CSA B51 (Canada CRN)
- ISO 9001- 2008
- PED 97/23/EC (European Pressure Equipment Directive)
- ATEX 94/9/EC (European Potentially Explosive Atmospheres)
- CSQL (China)
- GOST-R (Russian)
- US Coast Guard
- Nuclear – 10 CRF 50 Appendix B, NCA-4000, NQA-1 N285.0
- First Point Assessment Limited
